Automatic Name Generation

This feature allows the user to decide a criteria for naming his stocks and slits. The user might want to name his stocks or slits on the basis of their respective widths, material, quantity, serial number, customer name or any combination of these parameters.

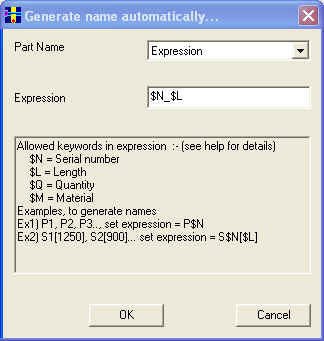

This can be done by clicking on the Auto Names button and selecting the appropriate expression in the dialog box.

The user can select which parameter to be considered while naming by using the appropriate letters

0 (zero) Serial number
N Slit Name (Only if slit name already exist and you want to add suffix or prefix to it)
W Width
Q Quantity
M Material

The user has to type "$" before typing the appropriate alphabet.


consider a stock with following details

Serial No. Width Quantity Material
15 5000 56 er12

Expression: $0_$W_$Q Name: 15_5000_56

Expression: $0_$M_Job12 Name: 15_er12_Job12
