Regional and Language Setting for Output

If you are using a Non-English version of windows, and use "," (comma) instead of "." (point) as the decimal separator then PLUS 2D also reads this settings and outputs all numbers in this format. This may sometimes cause problems in some cases where you are exporting the data to another program which cannot accept numbers with the "," (comma) as the decimal separator (say you are exporting to some CNC controller).

The changes in the Regional and Language Options will be applicable to all applications installed on your computer.

In such a situation, you should change the Windows Regional Settings as described below...

For Windows XP
1. Goto Start->Control Panel->Regional and Language Options.

Control panel can be open in two views they are as show below. Go through the proper one to get the 'Regional and Language Options'.

View 1 : Category View
Step 1 Step 2

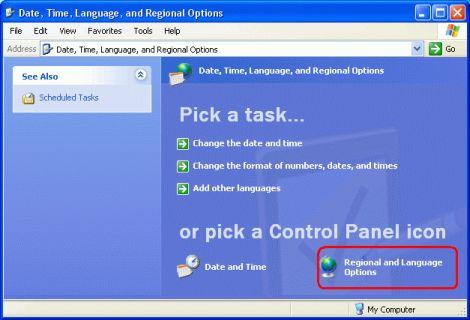

Regional and Language Setting for Output : Control Panel View 1

Regional and Language Setting for Output : Control Panel View 1
View 2 : Classic View

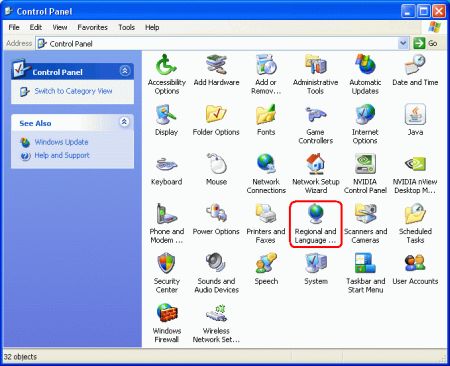

Regional and Language Setting for Output : Control Panel View 2


You will see the “Regional and Language Options” window as shown below :

Regional and Language Setting for Output -  Language Setting



2. Click on “Customize” button in the Regional Options tab, highlighted in the figure 1 above.

Regional and Language Setting for Output - Customize Option

3. In the Customize Regional Options window, select the Numbers Tab.
set the DECIMAL symbol to "." (DOT) and Digit Grouping symbol to "," (Comma), as shown in the above
figure 2.

For Windows 98
Goto Start->Settings->Control Panel->Regional Settings
Go to the "Numbers" tab,
set the DECIMAL symbol to "." (DOT) and Digit Grouping symbol to "," (Comma)

For other versions of Windows
Go to the windows setting,
Start->Settings->Control Panel->Regional Settings->Numbers->Decimal Symbol
and change the DECIMAL symbol to "." (DOT) and Digit Grouping symbol to "," (Comma)
Now, start any of our application, it will now use DOT as the decimal symbol and Comma as the Grouping symbol while taking the input and generating any output files.
