Digitizing Software to Replicate Templates PLUS Replicam : Version 1.xx is released

August 15, 2008 - Nirvana Technologies is proud to release PLUS Replicam : Version 1.xx, a digitizing software that helps you generate accurate drawings of complicated shapes quickly from digital images. Start with a photograph of your template, calibrate the image in PLUS-Replicam, and trace the outline of the shape automatically or manually and save it as a DXF file. This file can be integrated into your workflow for downstream activities like order entry, production planning, optimization etc. Optionally, you can create the NC codes for the shape.

The latest release is available for immediate download from our DownloadCenter.

Benefits:

Ensures accuracy while saving time and effort.
Highly flexible – no limits on the size of the template.
No need to invest in an expensive digitizer or digitizing table.
Save logistic cost and hassles – no need to transport and store templates.
Template drawings can be archived and retrieved for later use.
Fast transition from data to cutting table. Also, integrated with PLUS 2D.

Features:

Trace shape outline automatically or manually and convert into a smooth tangential contour suitable for CNC machines.
Add break out cuts and set attributes like speed, pressure, and other CNC attributes for the cut.
Digitize complicated shapes, holes and cutouts, drawing them on separate layers for drilling, grinding etc.
Use Inquiry tools to verify dimensions in addition to drafting features like fillet, chamfer, edit, scale, rotate, mirror and snaps.
Generate the DXF file of the shape traced.
Optionally, generate the NC Code, for many different CNC cutting machines, for the traced shape.
Select layers to draw objects, set their properties and edit the objects.
Simple User Interface.

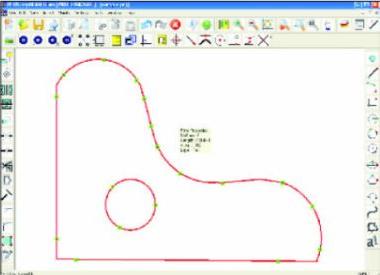

Photograph of Template	CAD Output of PLUS-Replicam

About Nirvana Technologies :

Nirvana Technologies is an India based company providing nesting software for sheet metal fabrication, glass cutting, sheet layout, woodworking industries and offering custom software development services in CAD/CAM. It is a registered software exporter under STPI having expertise in engineering optimization, complex geometry algorithms, and applications embedded into CAD systems.
